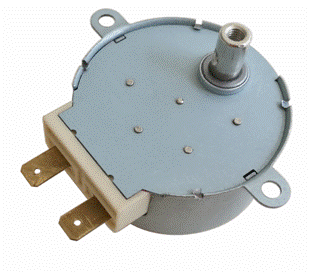

insulation
class B/F/H/N permanent magnet
synchronous motor 4w, AC micro permanent magnet synchronous motor for
Toaster/oven/microwave oven/ bread machine/blender/floor fan/fan heater
Toaster/microwave
oven/blender permanent magnet micro synchronous motor 4W with insulation grade N
|
Model |
Voltage/Freq. |
Speed |
Current |
Power |
Torque |
Temp. rise |
Insulation class |
rotate direction |
|
JY-0045 |
AC 120V-50/60Hz |
2-30 rpm |
≤40mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
|
JY-0045-1 |
AC 120V-50/60Hz |
2-30 rpm |
≤20mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
Technical parameter:
1. Rate parameter: AC 120V/220V-50/60Hz, ≤40mA
2. Speed:2-30 rpm
3. Power: ≤4W
4. Torque: >10kgf.cm
5. Temperature rise: ≤65K
6. Insulation class: B/F/H/N
7. Rotate direction: CW/CCW
8. Application: Toaster, oven, micro wave, bread machine, blender, floor fan, fan heater.
9. All the parameters can be customized.

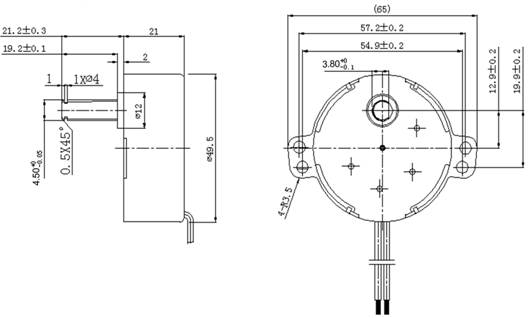

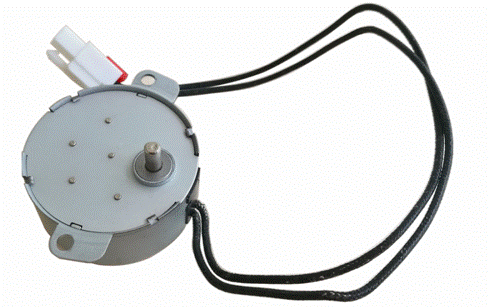

B/F/H/N insulation
class permanent magnet synchronous motor, AC micro permanent magnet synchronous motor for Toaster/oven/microwave oven/ bread machine/blender/floor
fan/fan heater
Toaster/microwave
oven/blender permanent magnet micro synchronous motor 4W with insulation grade
N
|
Model |
Voltage/Freq. |
Speed |
Current |
Power |
Torque |
Temp. rise |
Insulation class |
rotate direction |
|
JY-0047 |
AC 120V-50/60Hz |
2-30 rpm |
≤40mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
|
JY-0047-1 |
AC 120V-50/60Hz |
2-30 rpm |
≤20mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
Technical parameter:
1. Rate parameter: AC 120V/220V-50/60Hz, ≤40mA
2. Speed:2-30 rpm
3. Power: ≤4W
4. Torque: >10kgf.cm
5. Temperature rise: ≤65K
6. Insulation class: B/F/H/N
7. Rotate direction: CW/CCW
8. Application: Toaster, oven, micro wave, bread machine, blender, floor fan, fan heater.
9. All the parameters can be customized.

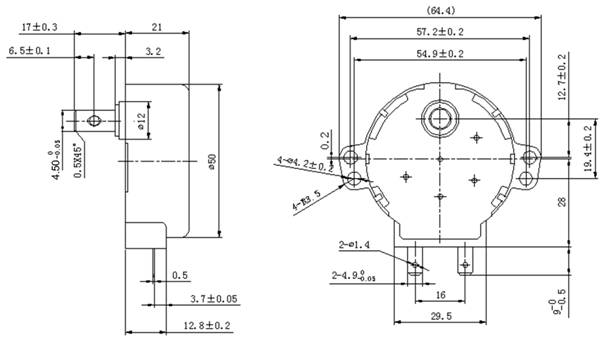

B/F/H/N
insulation class permanent magnet synchronous motor/high temperature
|
Model |
Voltage/Freq. |
Speed |
Current |
Power |
Torque |
Temp. rise |
Insulation class |
rotate direction |
|
JY-0048 |
AC 120V-50/60Hz |
2-30 rpm |
≤40mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
|
JY-0048-1 |
AC 120V-50/60Hz |
2-30 rpm |
≤20mA |
≤4W |
>10kgf.cm |
≤65K |
B/F/H/N |
CW/CCW |
Technical parameter:
10. Rate parameter: AC 120V/220V-50/60Hz, ≤40mA
11. Speed:2-30 rpm
12. Power: ≤4W
13. Torque: >10kgf.cm
14. Temperature rise: ≤65K
15. Insulation class: B/F/H/N
16. Rotate direction: CW/CCW
17. Application: Toaster, oven, micro wave, bread machine, blender, floor fan, fan heater.
18. All the parameters can be customized.
